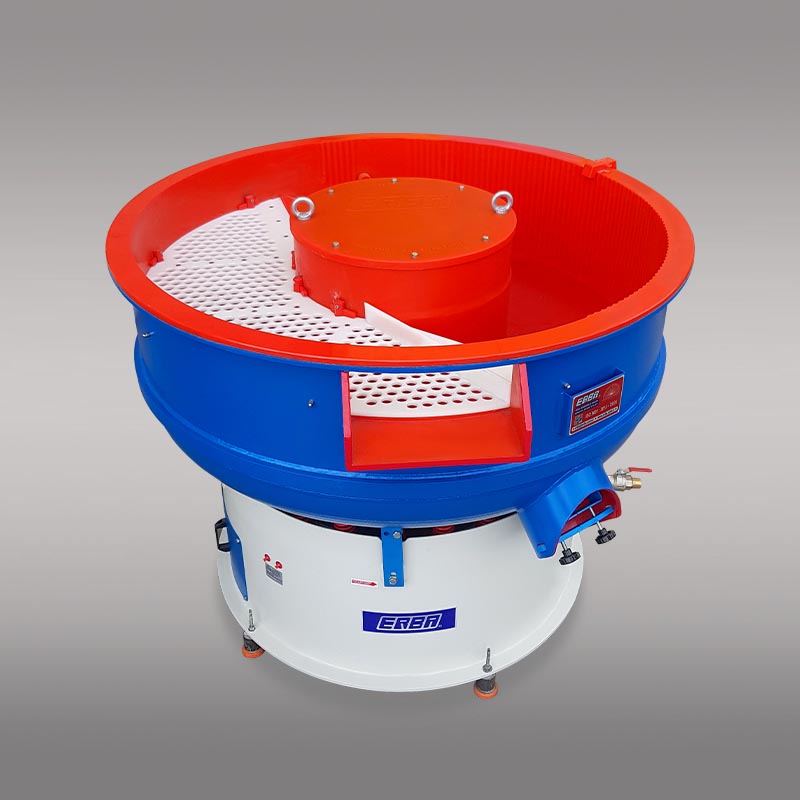

EVP A Circular Type Sieve Vibratory Surface Finishing Machine

Circular type vibratory surface treatment technology

Patented form design (patent no: 2002 00796)

Highly simplified patented sieve changing system (patent no: TR 1996 00342 Y)

Anti-stick knurled inner surface (patent no: TR 2002 01228 Y)

High-strength specially designed vibration motor whose step and vibration intensity can be adjusted.

Design suitable for compatible operation with other surface finishing machines.

Optional pneumatic controlled separation flap

High abrasion resistant hot cast polyurethane coating

Interior View
Flap
Small Stone Sieving (Optional)
Small Stone Sieving (Optional)
Manual Flap Handle (Optional)
Pneumatic Flap Handle (Optional)
Pneumatic Flap Handle with Shield (Optional)
Floating Flap Handle (Optional)
Material Input (Optional)
Pneumatic Discharge (Optional)
Sieve Lock
Magnetic Sieve – Standard – Double Deck Sieve
Sound Cover with Gas Amotisator – Pneumatic Piston Sound Cover (Optional)
Stone Discharge
Water and Chemical Input
Dosing Pump and Unit (Optional)
Panels : Standard Panel – Speed Controlled Panel – PLC Controlled Panel
Vibration Motors
TipBrüt HacimMotor GücüAğırlıkABCDE
EVP-A 220270 It1,5 kW460 Kg11901128995420795
EVP-A 350450 lt2,2 kW665 Kg142013301115400720
EVP-A 550735 lt4 kW1350 Kg162015501225420975
EVP-A 800950 lt5,5 kW1430 Kg183017401225420975
İmalatçı ölçülerde değişiklik yapma hakkını saklı tutar.
